We have already shown you a bar of steel being cut on a bandsaw. This is the machine it goes to next, and where it stops being a length of bar and becomes a rotor shaft. It is a manual lathe. There is no screen on it, no program, and no memory — every dimension it produces comes from a person turning a handle and reading a line on a dial.
What happens after the saw.
The saw gives you a slug of round bar, cut roughly to length and not much else. It is not straight enough, not the right diameter anywhere along it, and both ends are saw-cut. Turning is where all of that gets fixed: the bar is gripped in the chuck at one end, supported by the tailstock at the other, spun, and a fixed tool is fed along it taking metal off until the diameters are where the drawing says they should be.
Every one of those operations removes material and none of them puts any back. That is the whole discipline of the job. A shaft turned two tenths of a millimetre undersize is scrap, and it is scrap after all the time already spent on it, which is why a good turner creeps up on a dimension rather than aiming straight at it.

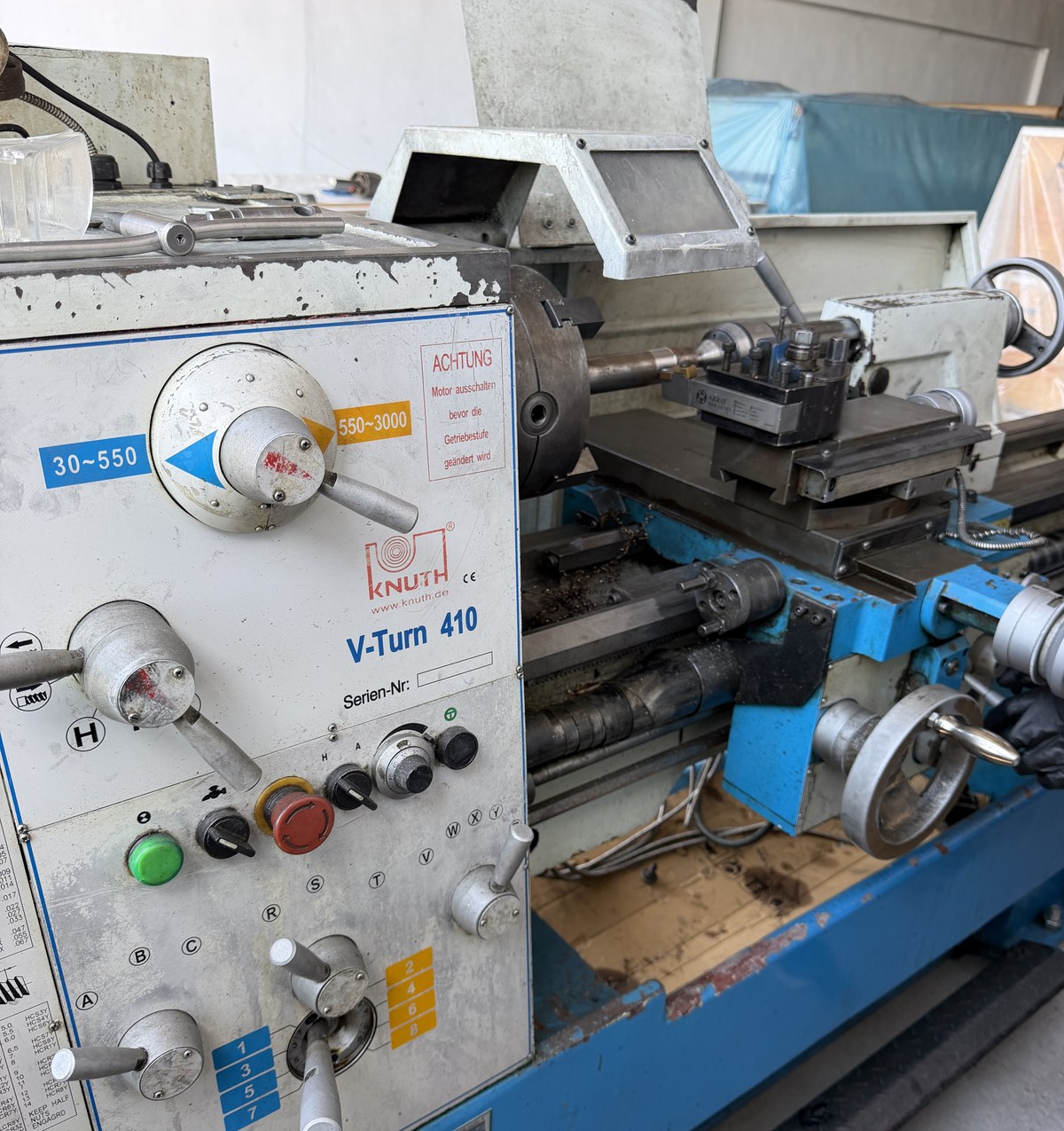

A KNUTH V-Turn 410. Levers, dials and handwheels, and a chip tray that tells you it gets used.
Two speed ranges and a warning in German.
On the front panel are two labels either side of a lever: 30–550 in blue and 550–3000 in amber. Those are the two spindle-speed ranges, in revolutions per minute, and the lever picks between them. Steel of a given diameter wants a particular surface speed at the cutting edge; a big diameter wants a low spindle speed and a small one wants a high speed, so a shaft that steps down along its length may get turned at more than one setting.
Next to the lever is a small red-printed plate: ACHTUNG — Motor ausschalten, bevor die Getriebestufe geändert wird. Switch the motor off before changing the gear range. It is there because this is a real gearbox with real dogs and gears in it, and shifting one under power damages the machine and can throw a lever. On the apron further down the bed there is a second one, in English this time, with an arrow pointing straight at the bolt it means: CAUTION: Please release this bolt before operation.

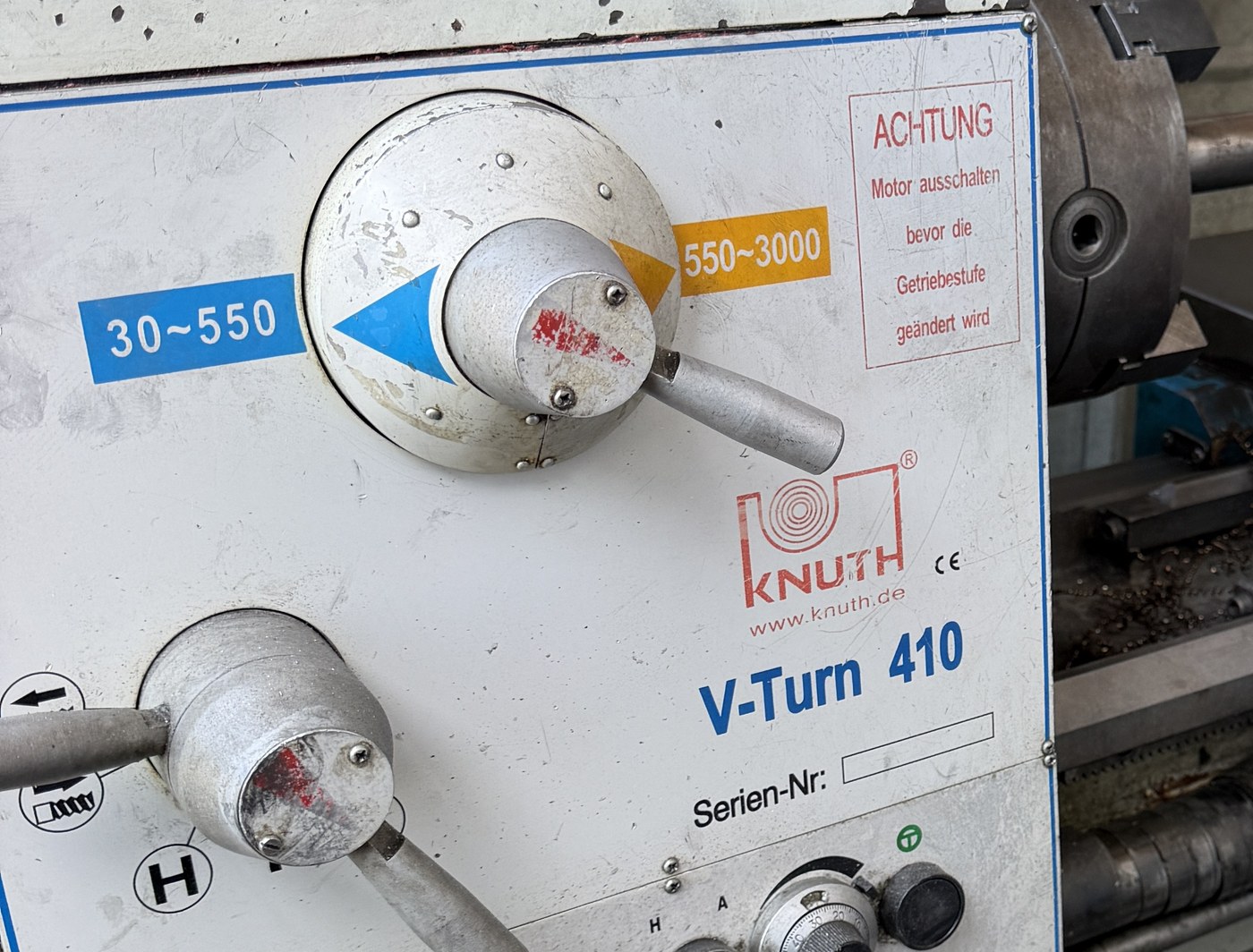

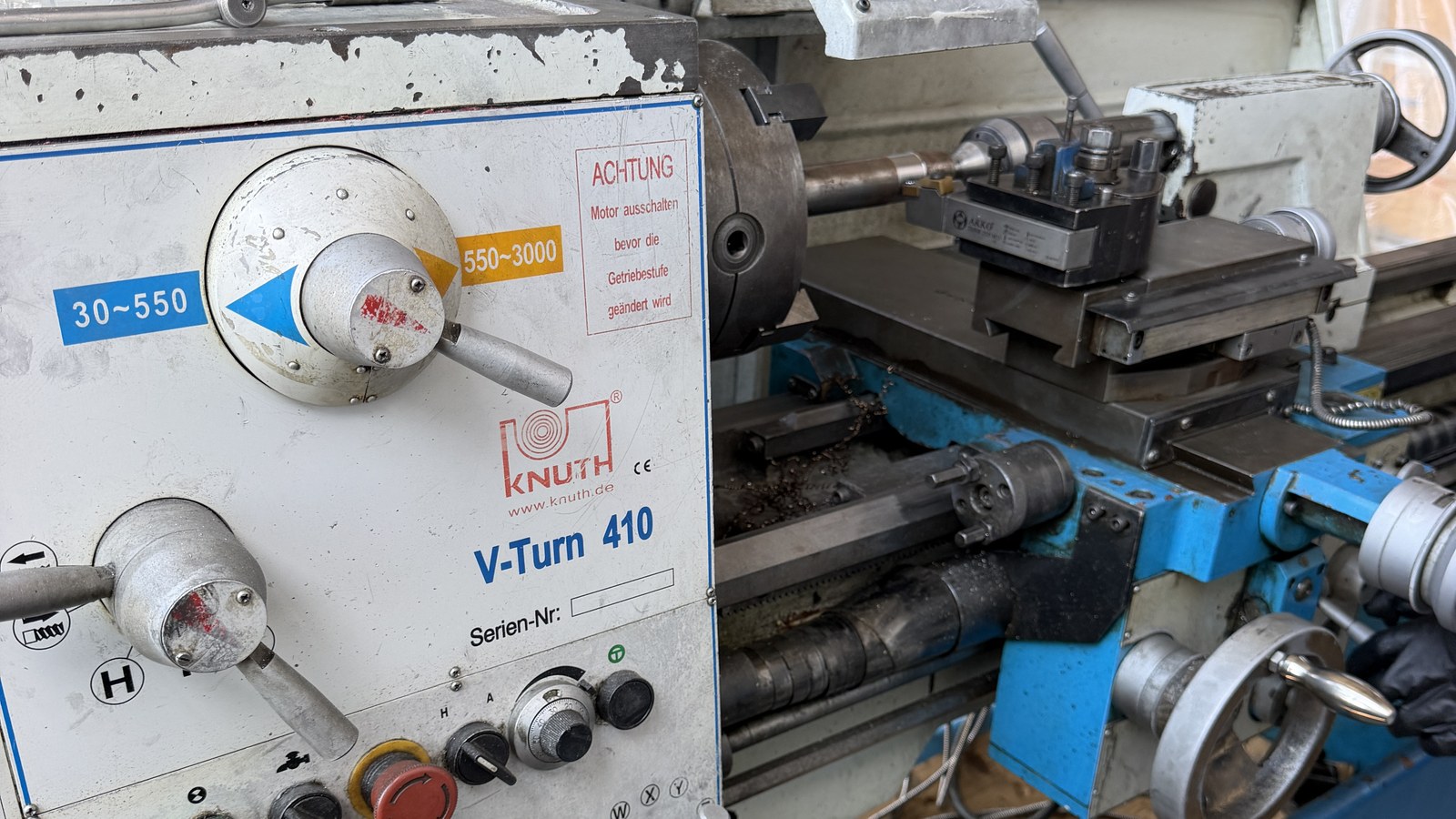

The gear range lever, the warning, the maker’s mark — and, under the model name, a box that was never filled in.
The red marks nobody printed.
Look at the two levers in that photograph and you will see smears of red paint on the boss of each one. Those are not from the factory. Somebody in the shop marked the positions they actually use, by hand, because finding a setting by feel in the middle of a job is faster than reading a chart every time.
That is what a machine looks like after it has been worked rather than owned. The manufacturer supplied a set of charts screwed to the front; the shop has added its own layer of memory on top of them, in gloss paint, for the four or five settings that come up again and again. You cannot buy that layer. It accumulates.
A brass table for cutting a thread.
Bolted to the carriage is a small dial with an engraved plate above it reading INDICATOR TABLE. It exists to solve one specific problem, and it is worth explaining because it is a lovely piece of pure mechanism.
Cutting a screw thread takes several passes, each one a little deeper. The tool has to follow exactly the same helix every time; if it starts a fraction out of step on the second pass it cuts a new thread crossing the first, and the part is ruined. The dial turns with the leadscrew, and the table tells you which numbered line to engage the half-nuts on for each pitch — 0.5, 0.75, 1, 1.5, 2, 3, 4, 6 mm and the rest, against gear options marked 11T, 13T and 14T. Follow it and every pass lands in the same groove.
No electronics, no sensors, no software. A geared dial and a table of numbers, doing arithmetic in brass.

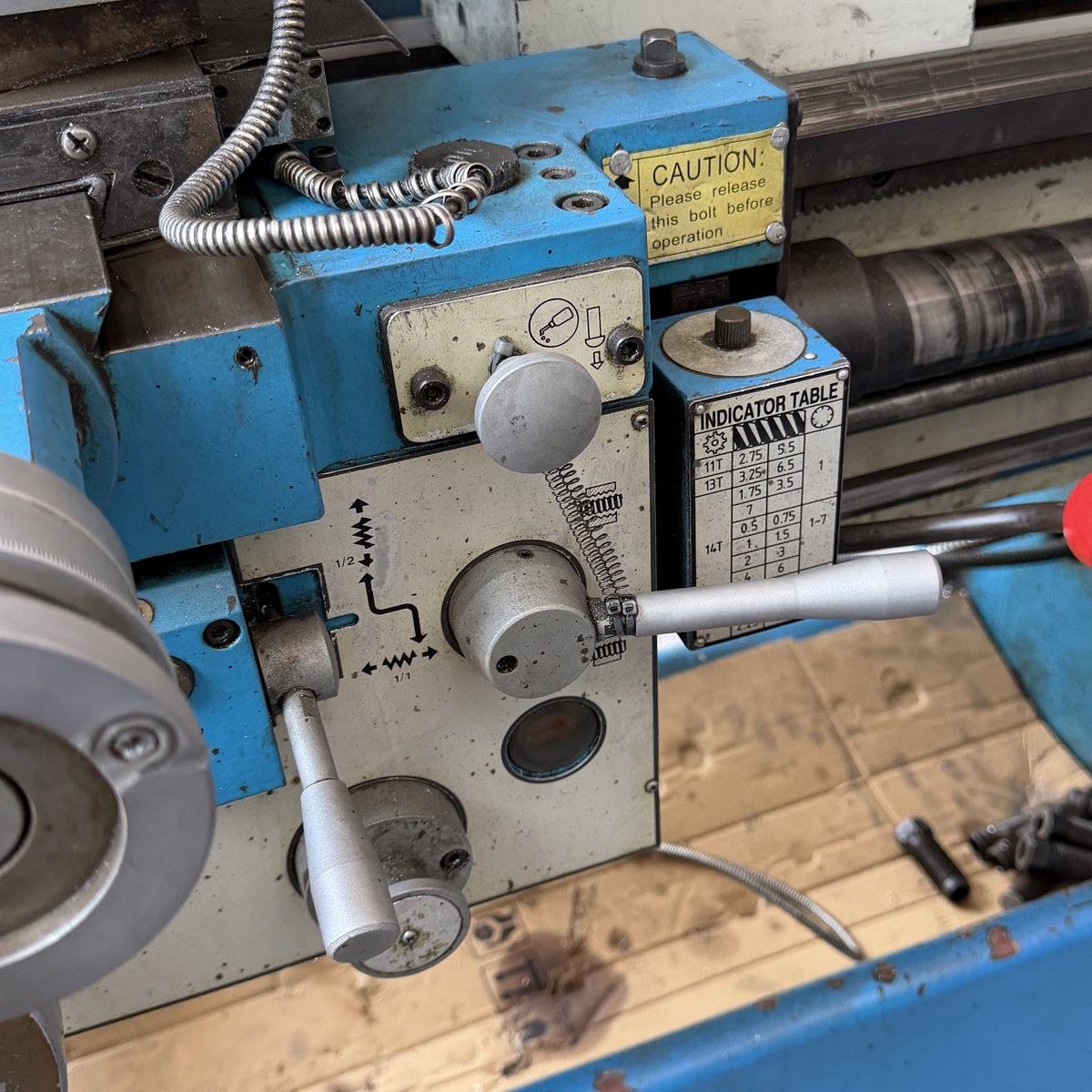

The carriage. The red ball engages the half-nuts; the dial above it decides when.

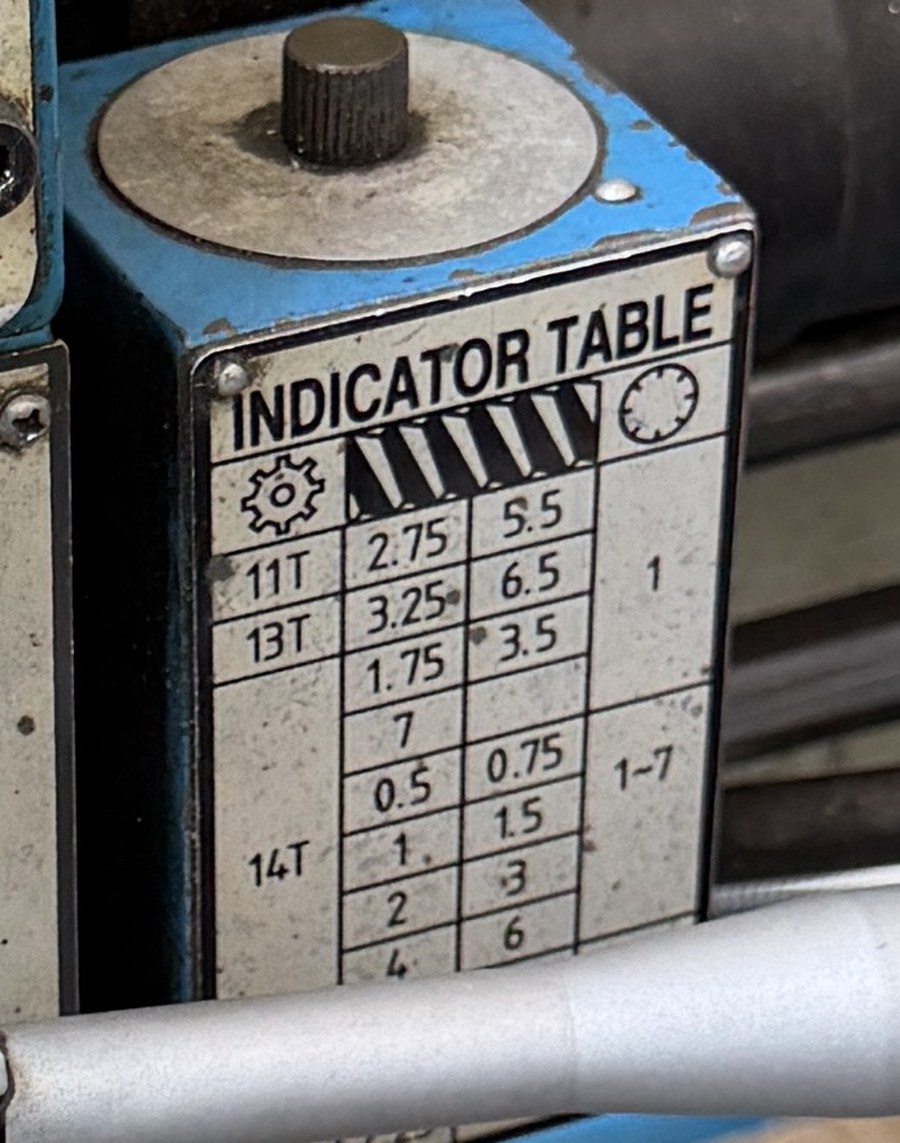

Pitches down the middle, gear options on the left, and which lines on the dial you are allowed to use.
The box that was never filled in.
Under the model name on the front panel are the words Serien-Nr and a blank white rectangle. Nobody ever wrote in it.
We have just published a whole piece about why the serial number on the front of every charge controller we build matters — which unit, built when, in which batch, so a support conversation starts from a fact and a bad component can be traced across a whole production run. Every machine we sell carries one. The machine that turns the shafts for them has an empty box where its own should be.
That is not hypocrisy, but it is worth being honest about the difference. A serial number is a promise to somebody else. It exists so that a person who bought a thing, years later and possibly from a different continent, can find out what they have. Nobody was ever going to need to trace this lathe: it sits in one building, one shop knows its habits, and if it breaks the people who fix it are standing next to it. Traceability is not a virtue we perform. It is a specific tool for a specific problem, and this machine does not have that problem.
Why a manual machine at all.
The honest answer is setup time. A CNC lathe wins decisively when you are making the same part hundreds of times over: you pay once in programming and fixturing, and then every part after that is nearly free. For a handful of shafts, a modification, a repair, or the first one of something you have not made before, a person at a manual machine is simply quicker to get cutting — and quicker to stop and change their mind halfway through.
This is not an argument that manual machining is better. It is an argument that the two are good at different things, which is the sort of claim that survives contact with a workshop. What decides the accuracy of the parts coming off this lathe is not the machine anyway. It is whether the person running it measures, and how often.
The operation before this one.
Here is the bar being cut to length on the saw, filmed on a phone in the same workshop. Nothing staged. It is the step immediately before everything described above:
The shaft that comes off the lathe goes into the generator inside an Atlas. You will never see it once the machine is assembled, which is exactly why it is worth showing now.
Turning takes metal off. Nothing puts it back.
That is the entire reason a shop measures more often than it cuts.
