Home Inverter

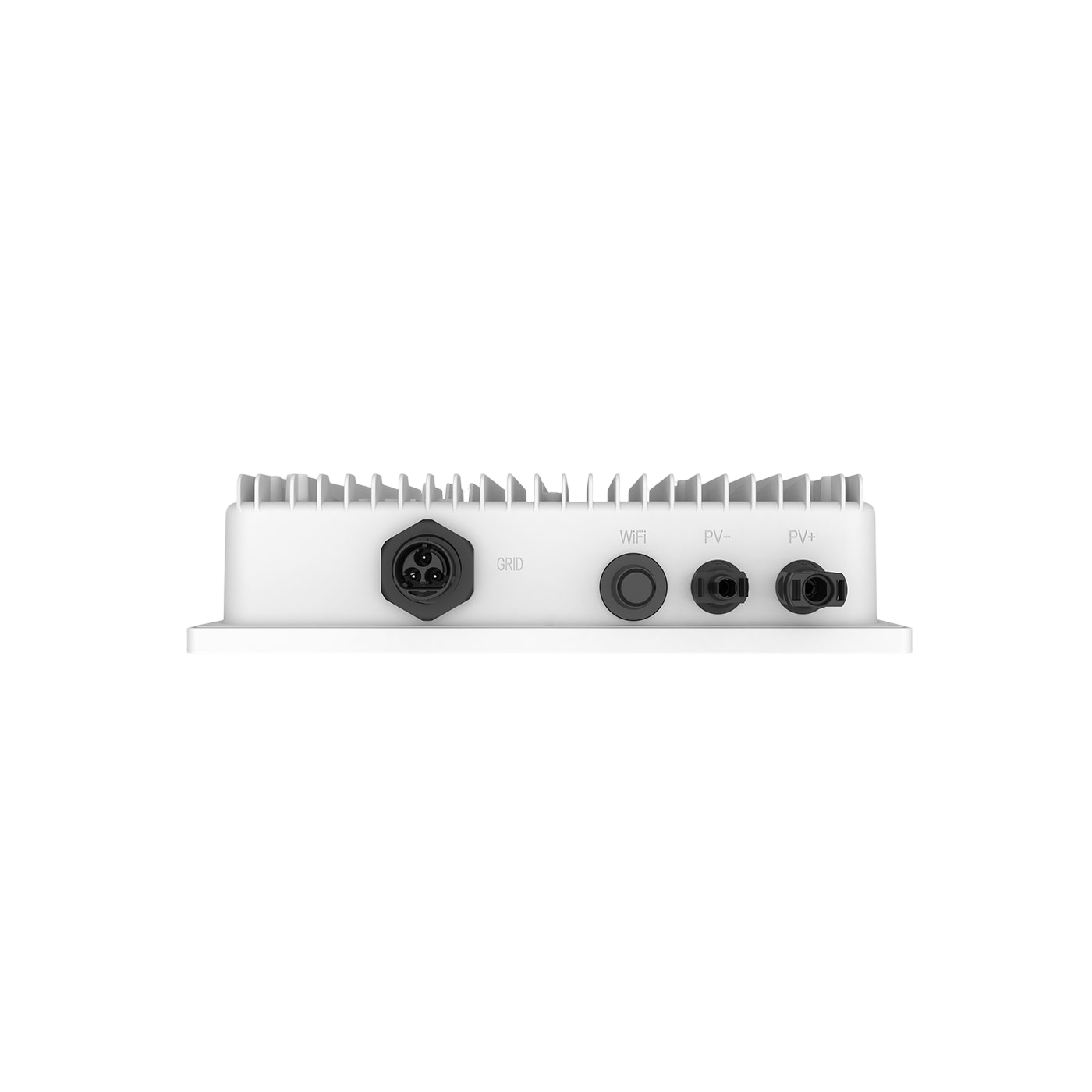

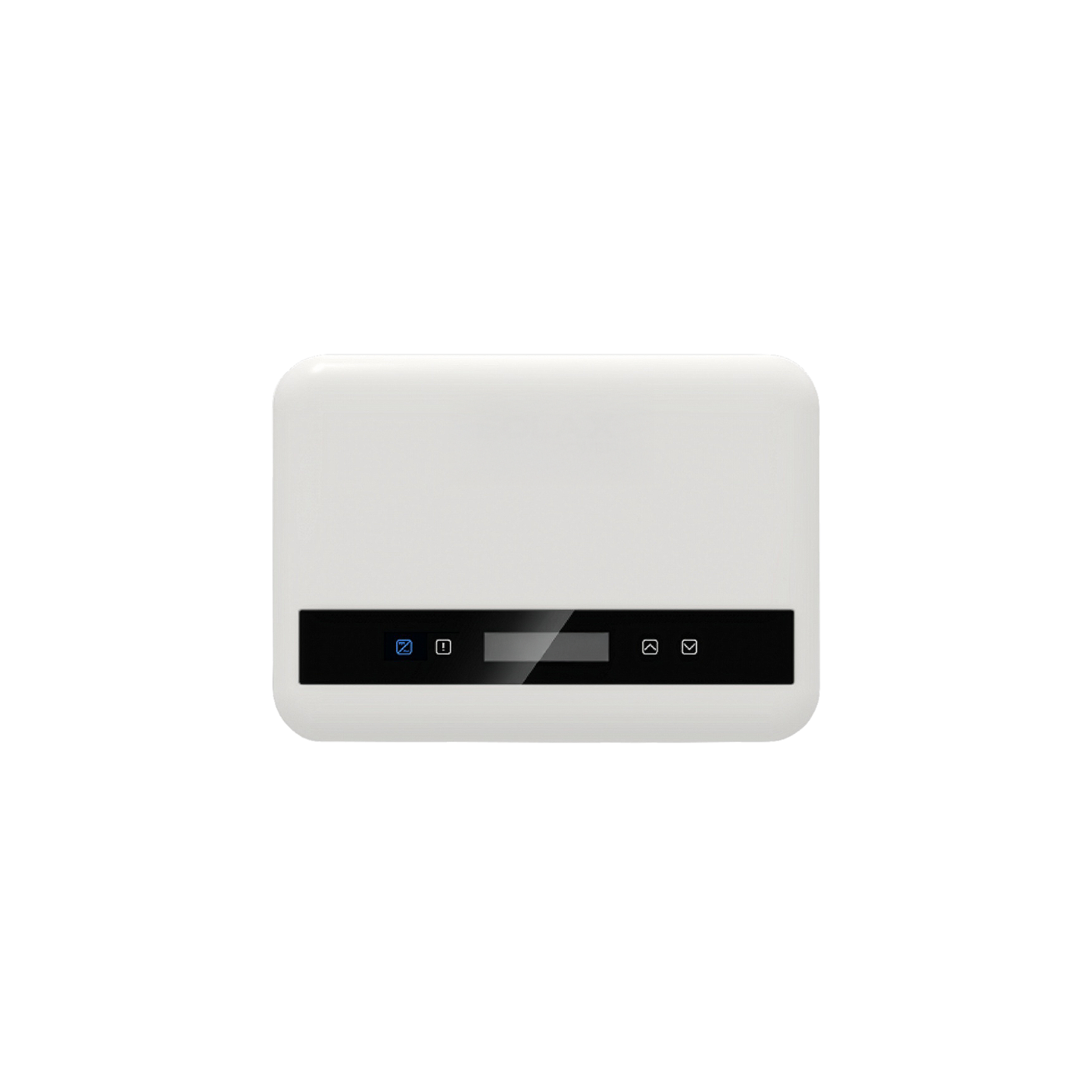

The SolaX X1 Mini G4 is a compact and efficient inverter designed for residential wind turbine systems. It operates reliably with rapidly changing voltage, making it suitable for small wind turbines where standard solar inverters may struggle.

Wind turbines generate continuously variable voltage depending on wind speed. Unlike MPPT-based solar inverters designed for stable PV input, this inverter uses wind turbine mode with a fixed power vs current (P–I) curve, enabling stable operation and improved energy capture under dynamic wind conditions.

Specifications

• DC Input Voltage Range: 40 – 500 V DC
• Rated Output Power: Up to 3.3 kW
• Grid Voltage: 230 V AC
• Datasheet →
• Instructions for Connecting a Wind Turbine →

⚠️ The inverter must be configured for wind turbine use before operation. Default solar (MPPT) settings are not suitable for wind energy systems.

        → Advanced Settings
             → Energy Source Configuration
                  → Wind Turbine
                       → Wind Turbine: ENABLED
                       → PV Mode: DISABLED

Recommended power curve to be set up
